    Behave Test Runner

    A VS Code extension for discovering, running, and debugging Behave tests with full integration into the VS Code testing framework.

    • 🔍 Automatic Test Discovery: Automatically finds and parses .feature files in your workspace
    • ▶️ Run Tests: Run individual scenarios or entire feature files with a single click
    • 🐛 Debug Support: Debug scenarios with full VS Code debugging capabilities
    • 📊 Test Explorer Integration: View and manage tests in the VS Code Test Explorer with organized hierarchy
    • 🎯 CodeLens Support: Run/debug scenarios directly from the editor with inline buttons
    • 🏷️ Tag-based Organization: Automatically groups scenarios by tags for better organization
    • 📋 Scenario Outline Support: Full support for scenario outlines with individual example tracking
    • 🔢 Smart Example Naming: Clean, numbered examples (1:, 2:, 3:) instead of verbose names
    • 📏 Long Column Names Handling: Intelligently truncates long table column names for readability
    • ⚙️ Configurable: Customize behave command, working directory, and more
    • 🔄 Auto-refresh: Automatically updates when feature files change
    • 🚀 Parallel Execution: Run tests in parallel for faster execution
    • 🤝 Extension Compatibility: Designed to work seamlessly with Cucumber (Gherkin) Full Support
    1. Download the latest .vsix file from the releases page
    2. In VS Code, go to Extensions (Ctrl+Shift+X)
    3. Click the "..." menu and select "Install from VSIX..."
    4. Select the downloaded file
    git clone https://github.com/your-username/behave-test-runner.git
    cd behave-test-runner
    npm install
    npm run compile
    npm run package
    • Python with Behave installed (pip install behave)
    • VS Code 1.99.0 or later
    1. Open a workspace containing .feature files
    2. Discover tests by running the "Behave: Discover Tests" command
    3. View tests in the Test Explorer (Ctrl+Shift+P → "Testing: Focus on Test Explorer View")
    4. Run tests by clicking the play button next to any test
    5. Debug tests by clicking the debug button next to any test

    The extension automatically organizes your tests in the Test Explorer with multiple organization strategies:

    The extension uses Feature-Based (Hierarchical) Organization as the default strategy:

    • Feature Files: Top-level containers for your feature files
    • Scenarios: Nested as children under their respective feature files
    • Scenario Outlines: Special groups for scenario outlines with their examples
    • Individual Scenarios: Regular scenarios and scenario outline examples

    Note: The default organization strategy is set in the extension code and cannot be changed via configuration. You can switch between strategies using the context menu in the Test Explorer.

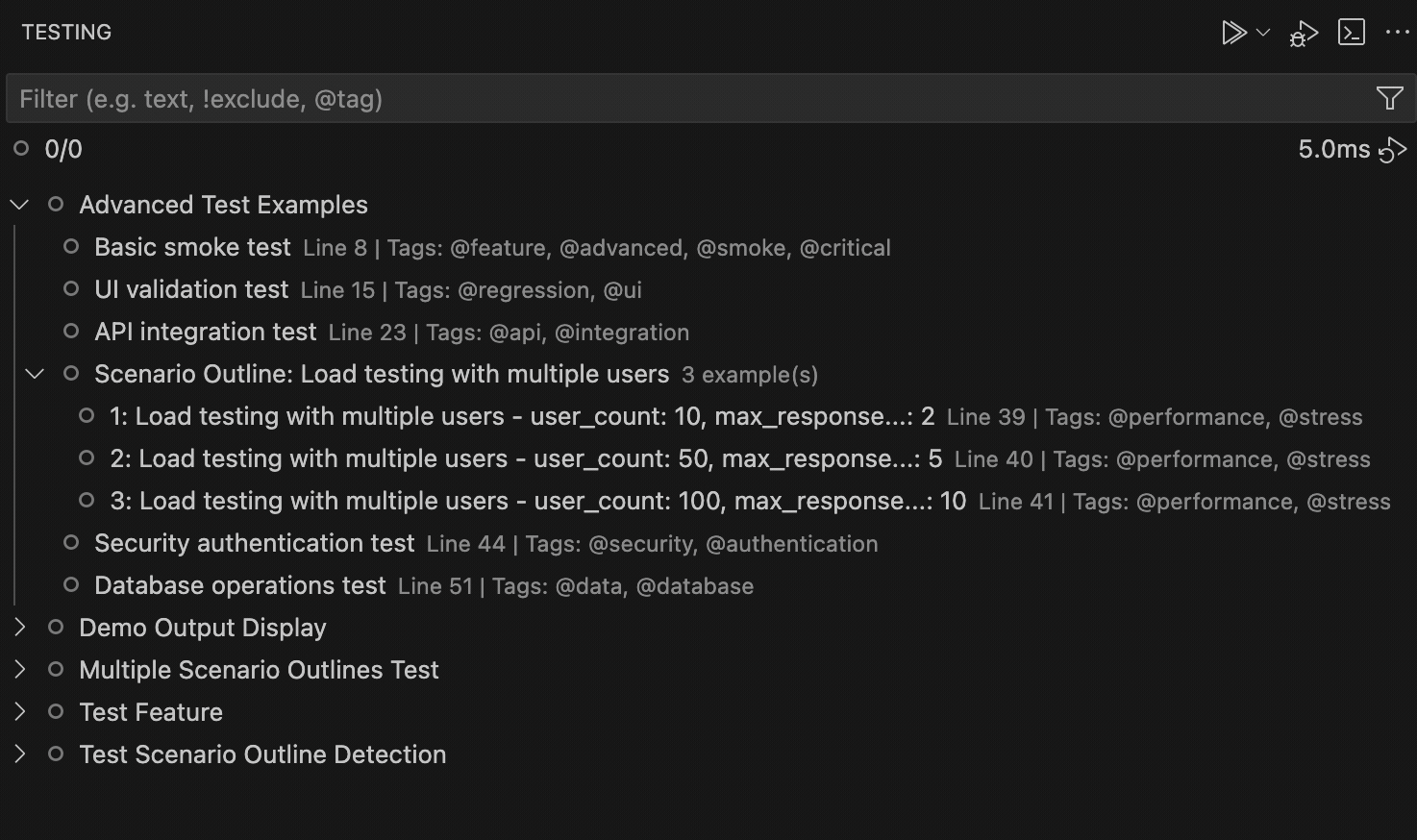

    switching views via test explorer

    • Tag-Based Organization: Groups scenarios by their tags (e.g., @smoke, @regression)
    • File-Based Organization: Groups scenarios by their file paths
    • Scenario Type Organization: Groups by scenario type (regular vs outline)
    • Flat Organization: All scenarios at the same level

    Switch Organization: Right-click in the Test Explorer → "Organization Strategy" → Choose your preferred organization strategy

    The extension provides enhanced support for scenario outlines:

    • Clean Example Names: Examples are named as "1:", "2:", "3:" instead of "Example 1", "Example 2"
    • Long Column Name Handling: Column names longer than 15 characters are truncated for readability
    • Multiple Outlines: Support for multiple scenario outlines in the same feature file
    • Sorted Examples: Examples are automatically sorted by their number
    • Organized Hierarchy: Scenario outline examples are grouped under their parent outline

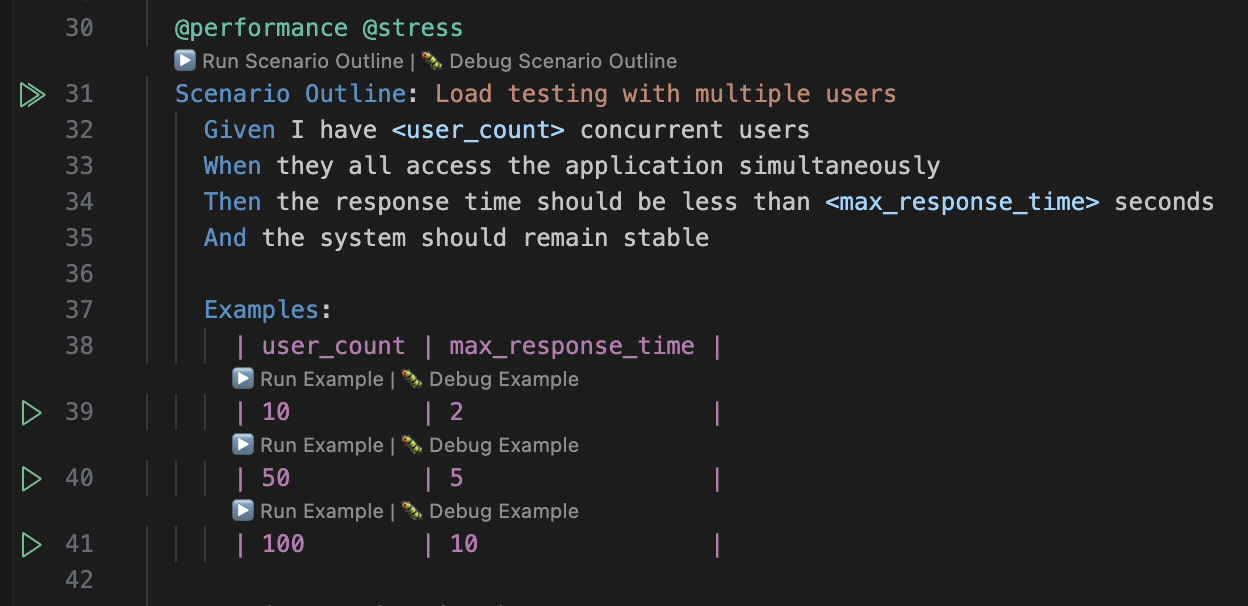

    • Execute test from scenario outline level or example executing a scenario outline example
    • Hierachichal view of scenario outline examples for easy navigation hierachichal view of scenario outline example

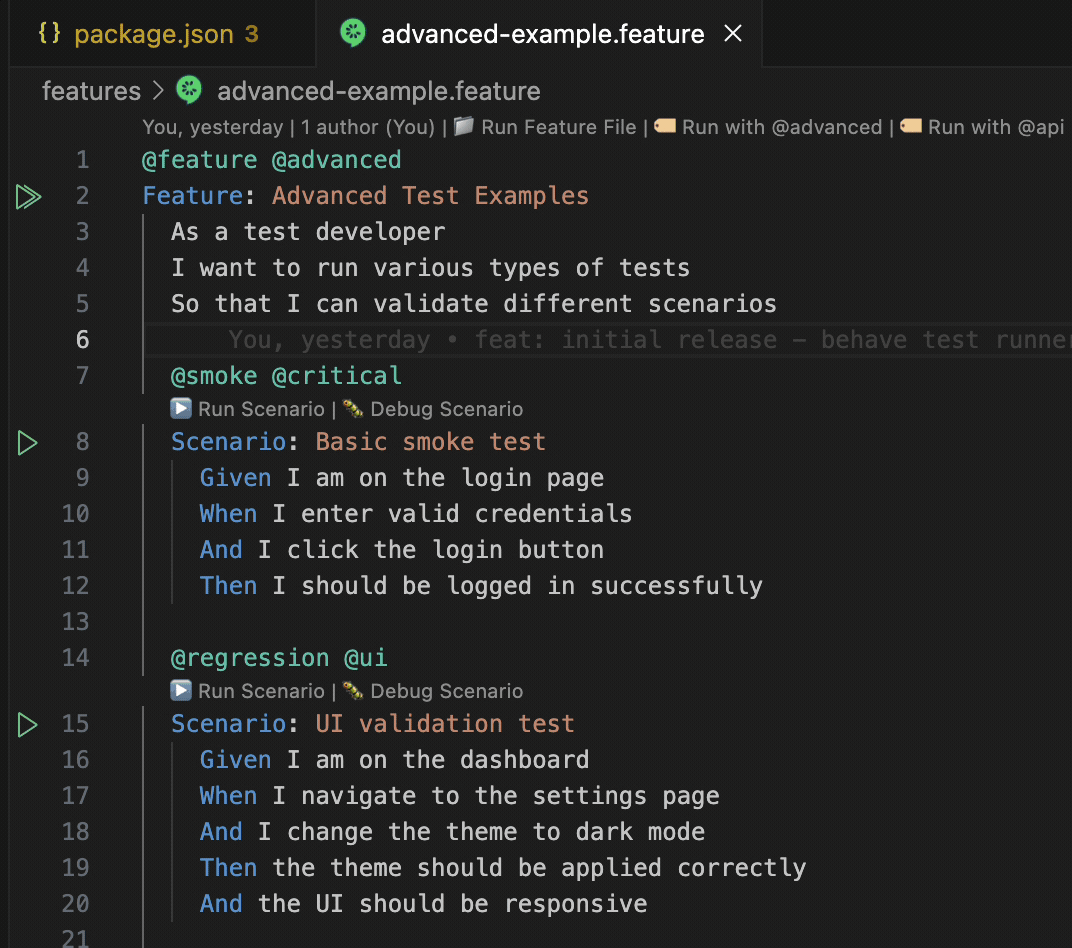

    When you open a .feature file, you'll see inline buttons above each scenario:

    • ▶️ Run Scenario: Runs the specific scenario
    • 🐛 Debug Scenario: Debugs the specific scenario

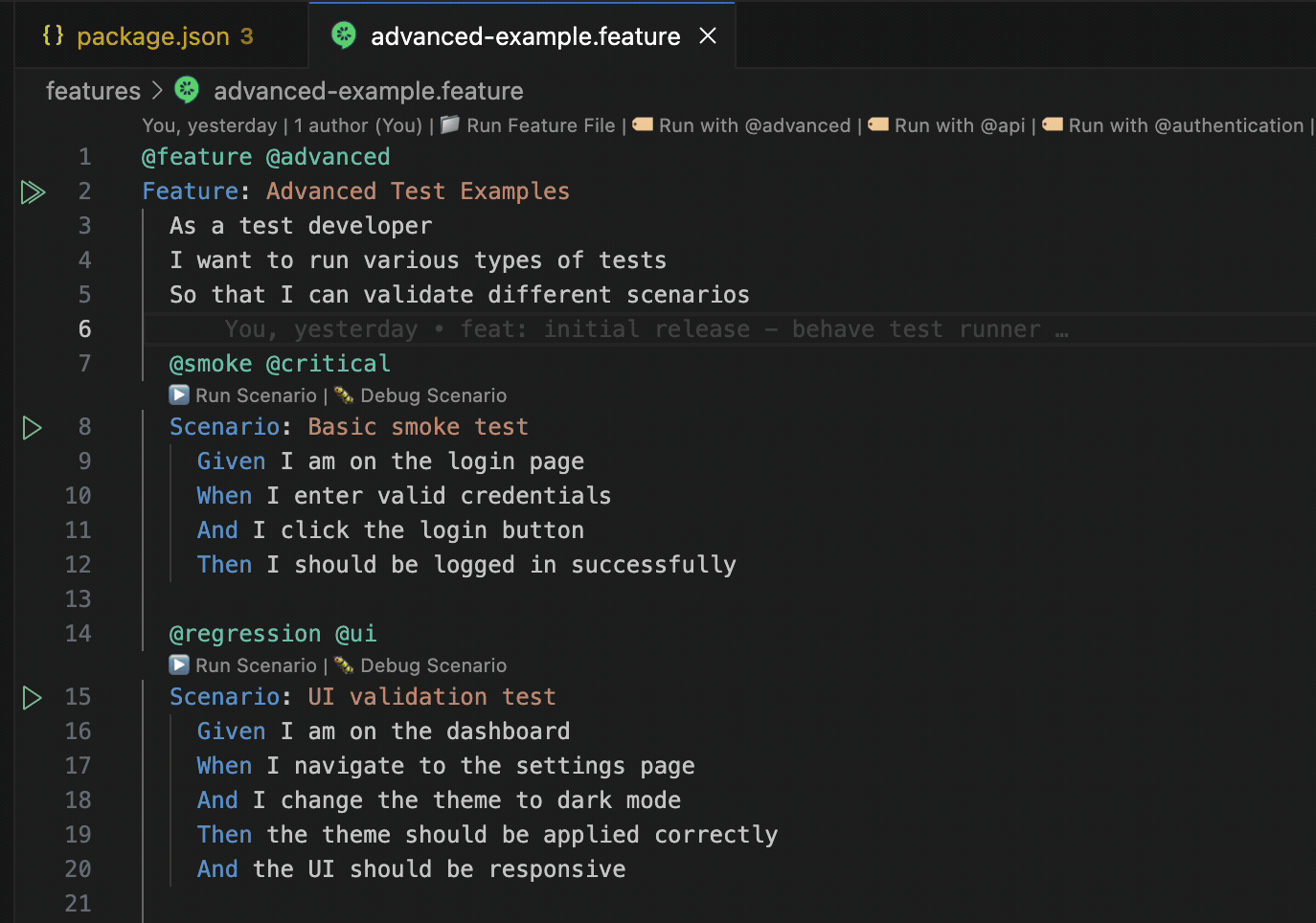

    • Feature inline buttons [Run Feature File]| Run with <@tags-available> | ... executing a feature

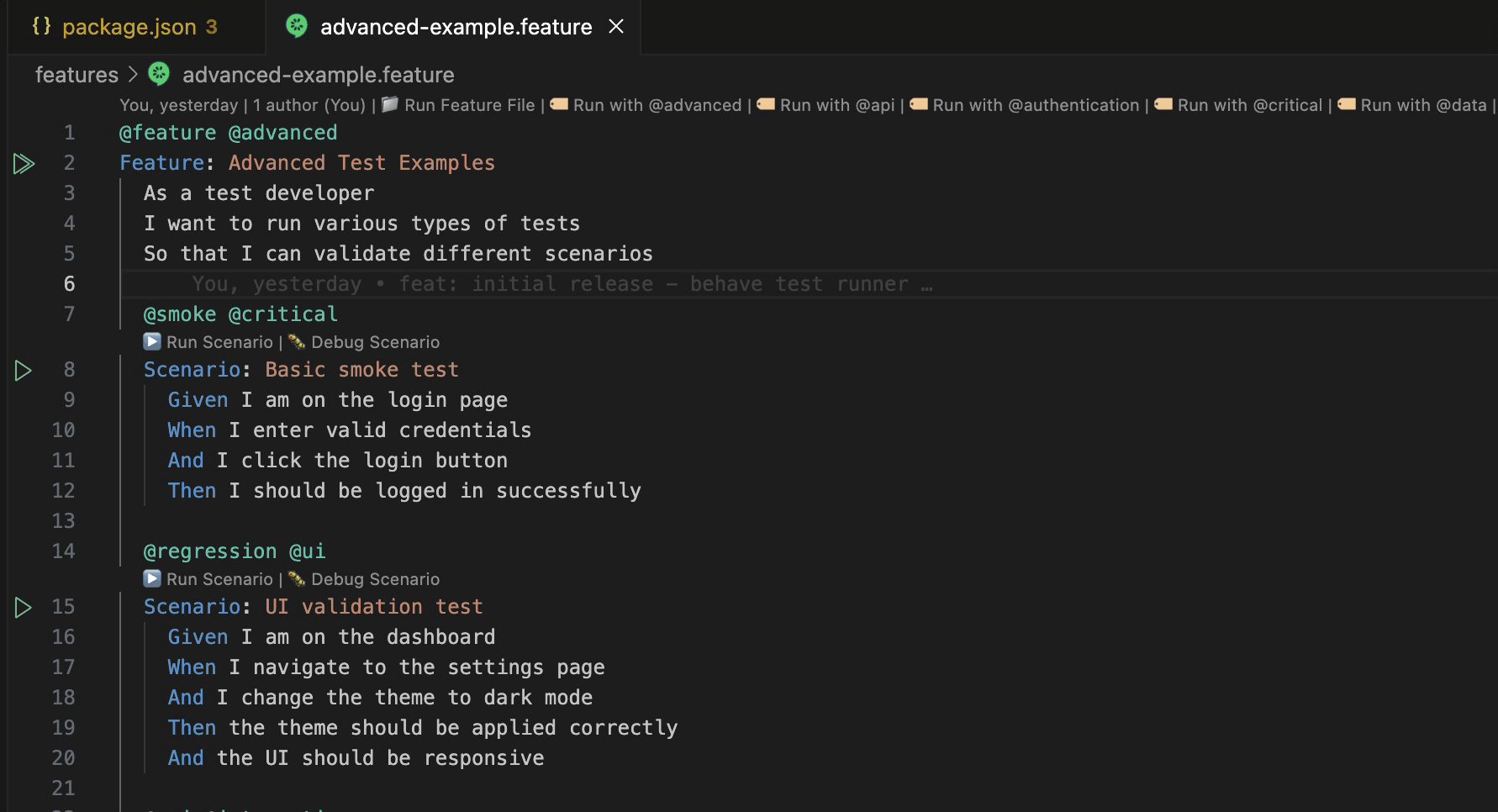

    • Play button on feature level will execute feature and update test explorer on test outcome executing a feature from side
    • Play button scenario level will execute an individual scenario executing a scenario from side

    Note: Right click on play button will give additional options like debugging test

    Command Description
    Behave: Discover Tests Manually discover and load test files
    Behave: Refresh Tests Refresh and reload all test files
    Behave: Run All Tests Run all tests in the workspace
    Behave: Run All Tests in Parallel Run all tests in parallel for faster execution
    Behave: Run Scenario Run a specific scenario (used by CodeLens)
    Behave: Debug Scenario Debug a specific scenario (used by CodeLens)
    Behave: Run Feature File Run an entire feature file
    Behave: Run Feature File with Tags Run a feature file with specific tags
    Setting Default Description
    behaveTestRunner.behaveCommand "behave" Command to run Behave tests (auto-detects Python if needed)
    behaveTestRunner.workingDirectory "" Working directory for test execution (empty = workspace root)
    behaveTestRunner.autoDiscoverTests true Automatically discover tests on startup
    behaveTestRunner.testFilePattern "**/*.feature" Glob pattern for test file discovery
    behaveTestRunner.enableCodeLens true Enable CodeLens buttons on feature files (disable if conflicting with other extensions)
    behaveTestRunner.enableTestExplorer true Enable Test Explorer integration (disable if conflicting with other test explorers)
    behaveTestRunner.priority "normal" Extension priority for handling feature files (use 'low' if other extensions should take precedence)
    behaveTestRunner.parallelExecution false Enable parallel execution of feature files
    behaveTestRunner.maxParallelProcesses 4 Maximum number of parallel processes for test execution
    behaveTestRunner.outputFormat "pretty" Output format for behave test results (pretty, plain, json, junit, progress, steps)
    behaveTestRunner.tags "" Default tags to filter tests (e.g., '@smoke,@regression')
    behaveTestRunner.dryRun false Enable dry run mode to see what tests would be executed without running them

    The extension automatically detects the correct Python command for your system:

    • macOS/Linux: Tries python3, python, then py
    • Windows: Tries py, python, then python3
    • Fallback: Uses python3 -m behave if direct behave command is not available

    You can override this by setting a specific command in your configuration.

    {
      "behaveTestRunner.behaveCommand": "python3 -m behave",
      "behaveTestRunner.workingDirectory": "${workspaceFolder}/tests",
      "behaveTestRunner.autoDiscoverTests": true,
      "behaveTestRunner.testFilePattern": "**/features/**/*.feature",
      "behaveTestRunner.enableCodeLens": true,
      "behaveTestRunner.enableTestExplorer": true,
      "behaveTestRunner.priority": "normal",
      "behaveTestRunner.parallelExecution": false,
      "behaveTestRunner.maxParallelProcesses": 4,
      "behaveTestRunner.outputFormat": "pretty",
      "behaveTestRunner.tags": "@smoke,@regression",
      "behaveTestRunner.dryRun": false
    }

    Basic Scenario Outline:

    @feature @login
    Feature: User Login

      @smoke @critical
      Scenario Outline: Login with different credentials
        Given I am on the login page
        When I enter username "<username>" and password "<password>"
        And I click the login button
        Then I should see "<expected_result>"

        Examples:
          | username | password | expected_result |
          | admin    | admin123 | dashboard       |
          | user     | user123  | dashboard       |
          | invalid  | wrong    | error message   |

    Multiple Scenario Outlines:

    @feature @api
    Feature: API Testing

      @api @validation
      Scenario Outline: Data validation with various inputs
        Given I have a valid API endpoint
        When I send "<data_type>" data with value "<input_value>"
        Then the response should contain "<validation_result>"

        Examples:
          | data_type | input_value | validation_result |
          | string    | hello       | valid             |
          | number    | 42          | valid             |
          | email     | test@test   | invalid           |

      @performance @load
      Scenario Outline: Load testing with different user loads
        Given I have configured the load testing environment
        When I simulate "<concurrent_users>" concurrent users
        Then the system should handle the load successfully

        Examples:
          | concurrent_users |
          | 10               |
          | 50               |
          | 100              |

    In the Test Explorer, these will appear as:

    Feature-Based (Hierarchical) Organization (Default):

    • Feature: User Login
      • Scenario Outline: Login with different credentials
        • 1: Login with different credentials - username: admin, password: admin123, expected_result: dashboard
        • 2: Login with different credentials - username: user, password: user123, expected_result: dashboard
        • 3: Login with different credentials - username: invalid, password: wrong, expected_result: error message

    Tag-Based Organization:

    • @smoke (group)
      • 1: Login with different credentials - username: admin, password: admin123, expected_result: dashboard
      • 2: Login with different credentials - username: user, password: user123, expected_result: dashboard

    This extension is designed to work alongside other VS Code Gherkin extensions.

    Note: This extension is developed and tested with Cucumber (Gherkin) Full Support extension. Since you're using Cucumber (Gherkin) Full Support for syntax highlighting and autocomplete, this extension focuses on test execution and discovery. The extensions complement each other perfectly:

    {
      "behaveTestRunner.enableCodeLens": true,
      "behaveTestRunner.enableTestExplorer": true,
      "behaveTestRunner.priority": "low",
      "behaveTestRunner.defaultOrganizationStrategy": "FeatureBasedOrganization"
    }

    Why this works well:

    • Cucumber Extension: Handles syntax highlighting, autocomplete, and Gherkin language support
    • Behave Test Runner: Handles test discovery, execution, and Test Explorer integration
    • No Conflicts: Each extension has its own domain of responsibility

    The priority setting determines which extension takes precedence when multiple extensions can handle the same file type:

    • "low": Let other extensions handle .feature files first
    • "normal": Standard priority
    • "high": Take precedence over other extensions
    src/
    ├── core/                   # Core functionality
    │   └── test-executor.ts    # Test execution logic
    ├── parsers/                # File parsing
    │   └── feature-parser.ts   # Gherkin feature file parser
    ├── test-providers/         # VS Code test integration
    │   └── behave-test-provider.ts
    ├── commands/               # VS Code commands
    │   └── command-manager.ts  # Command registration and handling
    ├── utils/                  # Utilities
    │   └── logger.ts           # Logging utility
    ├── types/                  # TypeScript type definitions
    │   └── index.ts            # Shared interfaces and types
    └── extension.ts            # Main extension entry point
    • Node.js 20.x or later
    • npm or yarn
    # Install dependencies
    npm install

    # Compile TypeScript
    npm run compile

    # Run tests
    npm test

    # Package extension
    npm run package
    Script Description
    npm run compile Compile TypeScript and build extension
    npm run watch Watch for changes and recompile
    npm run lint Run ESLint
    npm run lint:fix Fix ESLint issues
    npm test Run all tests
    npm run package Create VSIX package
    npm run package:vsix Create VSIX package with version
    npm run dev Start development mode
    npm run test:unit Run unit tests only
    npm run test:integration Run integration tests only
    npm run test:parser Run parser tests only
    npm run test:execution Run execution tests only

    The extension includes comprehensive tests:

    • Unit Tests: Test individual components
    • Integration Tests: Test VS Code integration
    • Parser Tests: Test Gherkin parsing
    • Execution Tests: Test test execution

    Current Test Status: 111 tests passing, 1 failing (33 lint warnings in source files only)

    Run tests with:

    npm test                   # Run all tests
    npm run test:unit          # Run unit tests only
    npm run test:integration   # Run integration tests only
    npm run test:parser        # Run parser tests only
    npm run test:execution     # Run execution tests only
    1. Fork the repository
    2. Create a feature branch (git checkout -b feature/amazing-feature)
    3. Commit your changes (git commit -m 'Add amazing feature')
    4. Push to the branch (git push origin feature/amazing-feature)
    5. Open a Pull Request
    • Follow TypeScript best practices
    • Use ESLint for code linting
    • Write comprehensive tests
    • Follow conventional commit messages

    Tests not discovered:

    • Ensure .feature files exist in your workspace
    • Check the testFilePattern setting
    • Try running "Behave: Discover Tests" manually

    Tests not running:

    • Verify Behave is installed (behave --version)
    • Check the behaveCommand setting
    • Ensure the working directory is correct

    Debug not working:

    • Make sure Python debugger is configured
    • Check that the Python extension is installed
    • Verify the debug configuration

    Enable detailed logging by opening the Output panel (View → Output) and selecting "Behave Test Runner" from the dropdown.

    This project is licensed under the MIT License - see the LICENSE file for details.

    See CHANGELOG.md for a list of changes and version history.

    "Code, coffee, repeat. Support the cycle! : If you enjoy using Behave Test Runner, consider contributing to fuel my coding dreams!

    Buy Me A Coffee

    Settings

    Member Visibility

    On This Page

    Behave Test Runner
